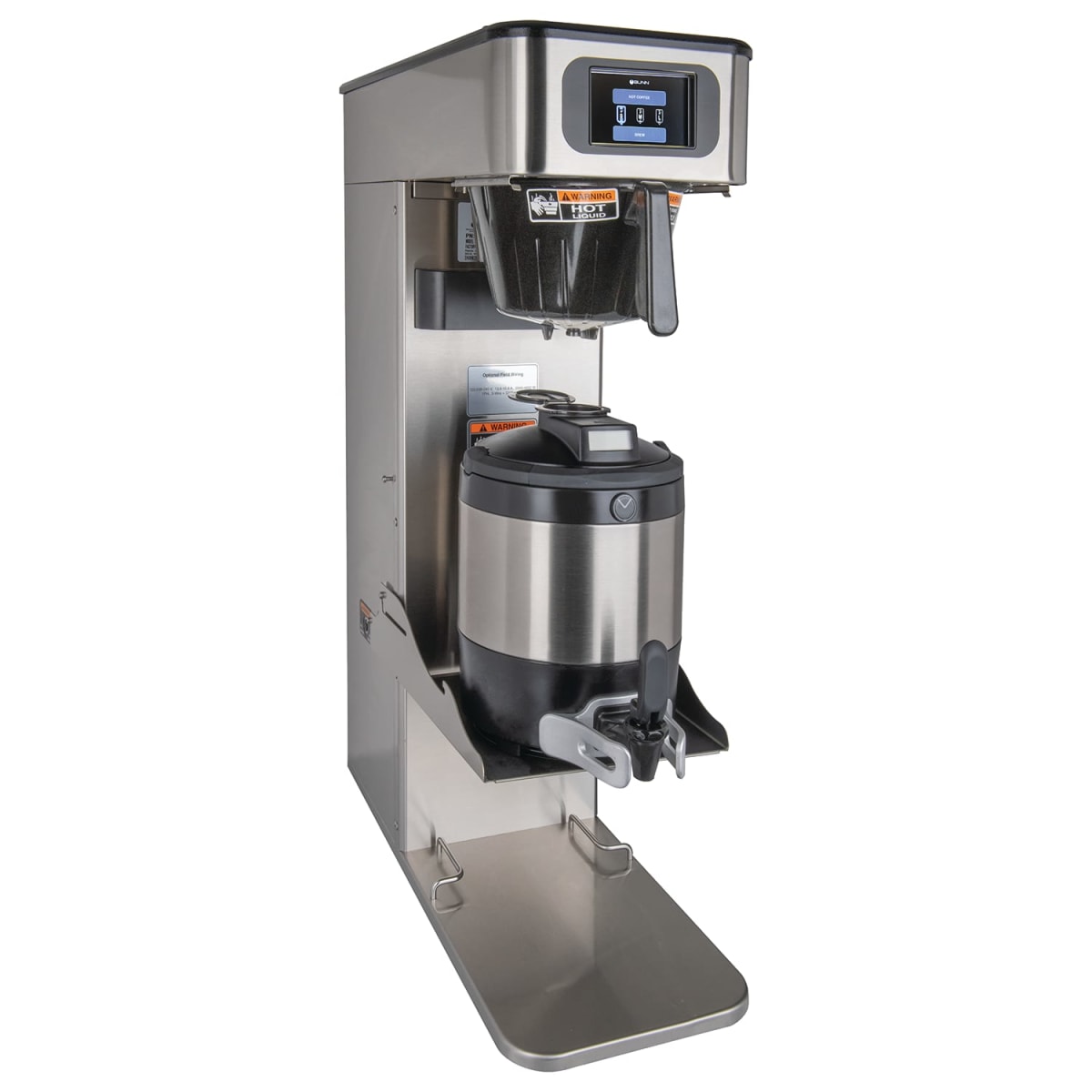

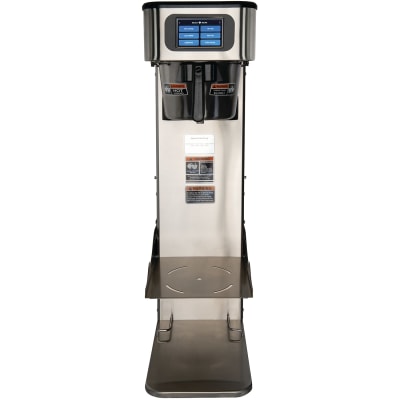

ITCB-DV HV Platinum Pro, 120/208-240 V

ITCB-DV HV Platinum Pro, 120/208-240 V

63000.0100
NSF UL
Dimensions: H 35.0" W 10.0" D 24.3"

Features:

  • Optional BUNNlink remote monitoring support. (kit required)
  • Engineered to meet diverse beverage needs this is the all-in-one solution allowing users to seamlessly brew a variety of high-quality beverages
  • The perfect solution for businesses that value both variety and space optimization
  • Brew a variety of recipes between 100°-207° and ambient without waiting to heat or cool with on-demand temperatures
  • Streamline your operation by maximizing output and minimizing effort engineered to deliver exceptional beverages to your customers
  • Versatility meets quality in our innovative design, seamlessly integrates cutting-edge technology and user-friendly features
  • Exclusive Peak Extraction sprayhead is multi-directional with a 17-hole design to ensure ultimate uniformity of extraction
  • SmartWAVE sprayhead technology creates an industry best uniformity of extraction for exceptionally smooth tasting coffee

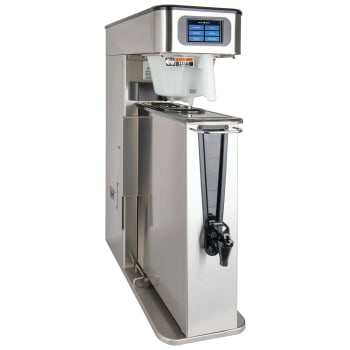

  • Includes both coffee and tee funnels
  • Includes integrated flip tray allows for brewing into thermal carafes and airpots
  • Electronic funnel locks prevent removal of each brew funnel until drip through is complete
Show more
Worry-free installation. Click the service link, after checkout, to request a quote for installation.
Worry-free installation. Click the service link, after checkout, to request a quote for installation.

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Compatible Servers
Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Specifications
Brewer Type
High Volume Systems
CAD 2D
Yes
Cord Attached
Yes
Plug Type
NEMA 5-15P
DBC
Yes
Electrical Configuration
120 volts 1700 watts 14.0 amps 1 phase 60 hertz 2 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 90.0
Flow Rate Required
1.25
Water Fitting
3/8" Male Flare Fitting
BrewWISE®
Yes
Brewer to Grinder Interface
Wireless
Finish/Color
Stainless
Funnel Type
Black Plastic Smart Funnel
Funnel Locks
Yes
Dispense Type
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
35.0
Machine Width
10.0
Machine Depth
24.3
Unit Volume
10.2
Unit Weight
78.0
