GEN3 1Gal (3.8L) ThermoFresh® Digital Sight Gauge Server w/Base

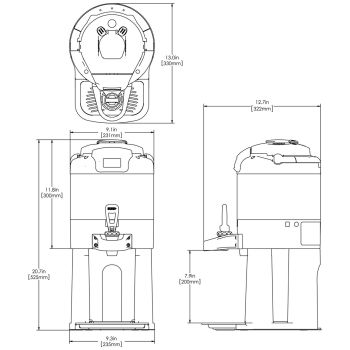

Dimensions: H 20.7" W 9.3" D 13.0"

The newly restyled ThermoFresh® server line delivers hours of heat retention, is ideal for self-service environments like convenience stores, offices, lounges, and hotel breakfast bars, and enhances operational convenience wherever it is used. The digital sight gauge models feature a one-piece digital display brew thru lid, which can be placed on servers in either a front or rear facing position --- ideal for staff to monitor while either on a counter or an island. The front facing soft-grip bail handle allows for easy removal from the brewer, and ergonomic transportation to and from the serving location. The base incorporates a quick-release mechanism, making each server capable of use with either tall or low-profile style Infusion Series brewers.


  • Brew-through design with flip lid cover
  • Large cup clearance allows for dispensing into cups, decanters and thermal carafes
  • Drip tray is easily removed for cleaning or to provide extra clearance for dispensing into pitchers
  • Fast flow faucet
  • Ideal for use with Twin or Single Infusion Series Brewers
  • Sturdy aluminum faucet guard keeps faucet area clean and protected
  • Unique lid design allows the display to be forward or rear facing
  • Self-locking stand allows for multiple brewing and serving options
  • Digital sight gauge operates on four easily replaceable AAA batteries with an average 1-year lifespan: display shows low battery symbol when replacement is needed
  • Soft-grip bail handle for easy transportation
  • Vacuum insulated to keep coffee hot for hours
  • Four-hour digital count-up timer
  • Volume indicator displays how much coffee is left inside the server
Show more
Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Installation and Operating
Brewer Type
Supports Reqts as Shipped
Funnel Type
Handle Type
Bail Handle
Dispense Type
Product Warranty
1yr Parts/1 yr Labor/1 yr CBA
Machine Height
Machine Width
Machine Depth
