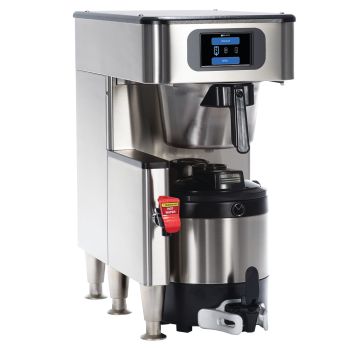

ICB TF ThermoFresh® 1.0 Gallon Platinum Edition™, 120/240V Stainless

ICB TF 1.0 Gallon Platinum Edition, 120/240V SST

54300.0100
NSF UL
Attention CA residents: Prop 65 Warning

Warning

This product can expose you to chemicals including BPA, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

Ok
Server(s) sold separately

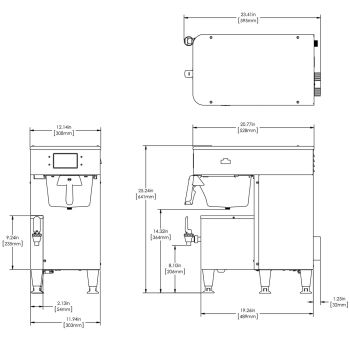

Dimensions: H 25.24" W 12.14" D 23.41"
The New Infusion Series Platinum Edition line of brewing equipment is equipped with an intuitive 4.3" touch screen, providing an enhanced user experience when operating and programming the brewers.

Features:

  • USB port for easy programming
  • Intuitive 4.3" touchscreen with user interface provides an enhanced experience when operating and programming the brewers
  • Energy-saver mode reduces tank temperature during idle periods
  • Digital readout displays in English, Spanish, or French ---for easier programming and control
  • PROP 65 Warning Decal included in packaging with equipment
  • Electronic funnel lock prevents removal of each brew funnel until drip- through is complete
  • SmartWAVE sprayhead technology creates an industry best uniformity of extraction for exceptionally smooth tasting coffee
  • ICB TF 54300.0100 is compatible with new TF 1.0-gallon Baseless ThermoFreshU+00AE Servers, all previous generations of TF 1.0-gallon Baseless TF Servers, and Airpots
  • Servers not included unless otherwise noted
  • Platinum Edition SmartWave technology delivers a timed air purge at the end of the brew cycle, removing residual water from the sprayhead, reducing lime build up and ultimately extending the life of the equipment
Show more
Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Programming
Specifications
Brewer Type
Satellite Systems
CAD 2D
Yes
Cord Attached
Yes/No Plug
DBC
Yes
Electrical Configuration
120/240 volts/ 3500 watts/ 14.6 amps/ 1 phase/ 60 hertz/ 3 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 90.0
Flow Rate Required
1.0
Water Fitting
3/8" Male Flare Fitting
BrewWISE®
Yes
Brewer to Grinder Interface
Wireless
Finish/Color
Stainless
Funnel Type
Smart Funnel
Funnel Locks
Yes
Faucet Location
Side
Legs
4" Satin Nickel Legs
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
25.24
Machine Width
12.14
Machine Depth
23.41
