H5X® Element, Stainless Steel
/cmsstatic/JPG/43600.0002_1.jpg
/cmsstatic/JPG/43600.9997_H5XA_FIG1-SHT1_I_3.jpg

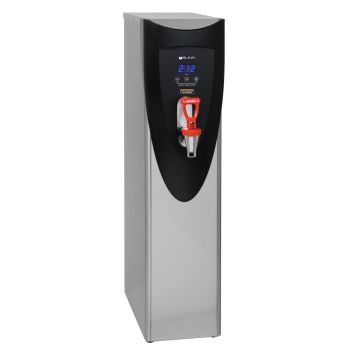

H5X® Element, Stainless Steel

5 Gal (18.9L) 208V SST Hot Water Dispenser

43600.0002
NSF UL
Dimensions: H 28.5" W 7.4" D 18.9"
Spec sheet and manuals

Accuracy, adjustability, energy efficiency and style in a quality hot water dispenser

Features:

  • Digital thermostat provides constant and accurate temperatures of 60º- 212ºF (15.6º-100ºC)
  • Contemporary, space-saving design
  • Programmable “Energy Saver Mode" reduces operating cost during idle periods
  • The perfect tool for added control over quality coffee and tea
  • LED display provides simple temperature adjustment
  • Thinsulate® tank insulation provides increased energy efficiency
Show more
Worry-free installation. Click the service link, after checkout, to request a quote for installation.
Worry-free installation. Click the service link, after checkout, to request a quote for installation.

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
English
Illustrated Parts
English
Installation and Operating
EnglishChineseDutchFrench (Canadian)GermanItalian
Service and Repair
English
Specifications
Brewer Type
CAD 2D
Yes
Electrical Configuration
208 volts 4050 watts 19.5 amps 1 phase 60 hertz 2 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 90.0
Water Fitting
1/4" Male Flare Fitting
Finish/Color
Stainless
Funnel Type
Dispense Type
Pull & Hold
Faucet Location
Upper
Temperature Time Setting
212� F
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
28.5
Machine Width
7.4
Machine Depth
18.9
