Single® SH Soft Heat® 120V

Single Soft Heat® 120V Brewer

27800.0009
NSF UL
Server(s) sold separately

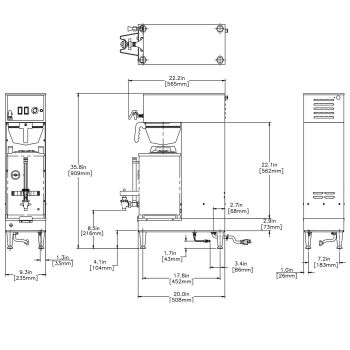

Dimensions: H 35.8" W 9.3" D 20.0"

Server holds beverages at a consistent temperature in the docking system

Features:

  • Servers not included unless otherwise noted
  • SplashGardU+00AE funnel deflects hot liquids away from the hand
  • Electronic grinder interface communicates to grinder on exact amount of coffee for selected brew batch size
  • No hot surfaces in coffee holding area
  • Patented server heat conrol automatically shuts off once target temperature is reached (Can be set to 175º-190ºF (79.4º-87.8ºC))
  • Brews 1/2, 1 or 1 1/2gal (1.9, 3.8 or 5.7L) batches
Show more
Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Service and Repair
Specifications
Brewer Type
Satellite Systems
CAD 2D
Yes
ADA
Supports Reqts as Shipped
Cord Attached
Yes
Plug Type
NEMA 5-20P
Electrical Configuration
120 volts/ 2100 watts/ 17.5 amps/ 1 phase/ 60 hertz/ 2 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 90.0
Water Fitting
1/4" Male Flare Fitting
Brewer to Grinder Interface
Cabled
Finish/Color
Stainless
Funnel Type
Stainless Steel
Dispense Type
Faucet Location
Upper
Legs
4" Black Legs
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
35.8
Machine Width
9.3
Machine Depth
20.0
Images
