H5EA PC Portion Control

/cmsstatic/JPG/39100.0000_H5E_DV_PC_200_DEGREES_1.jpg

/cmsstatic/JPG/E2A_I_3.jpg

H5EA PC Portion Control

5Gal (18.9L) Stainless Portion Control Hot Water Dispenser

39100.0003

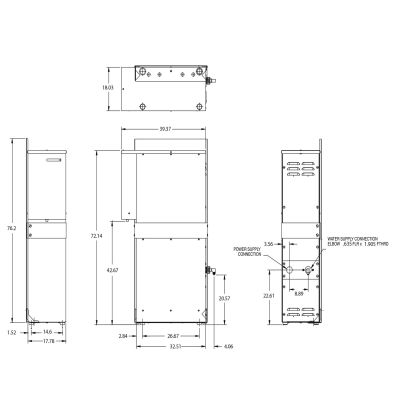

Dimensions: H 28.4" W 7.5" D 17.4"

Declaration of Conformity Spec sheet and manuals

Portion control hot water dispenser with 3 dispense volume options

Features:

Prepare large amounts of mashed potatoes, gravy, cheese sauce, gelatin, oatmeal, and many more foods
Front of machine volume programming
Precise temperature (60°F-212ºF) (15.5ºC-100ºC) ensures consistent, high quality results; adjustable in 1º increments
Locate hot water at preparation site to increase speed, safety and efficiency of kitchen staff
Dispenses hot water in three portion sizes
Three programmable volume settings and one push and hold continuous dispense button

Show more

This product may no longer be available for purchase or may have a suggested alternative . Please call 1-800-626-2866 for assistance, or use the “Learn more” button to submit a request for more information.

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Related Products

DRIP TRAY 02545.0000

COVER, DRIP TRAY-PERFORATED

COVER, DRIP TRAY-PERFORATED 02546.0000

Product Image Not Found

FOOT, RUBBER 02547.0000

DRIP TRAY KIT (2.5"HT-HW2)

DRIP TRAY KIT (2.5"HT-HW2) 02497.0000

Compatible Water Filters

WQ-55(3).2L SYSTEM

WQ-55(3).2L SYSTEM High Performance Water Filtration Solutions 56000.0002

WEQ-25(2).2L CARTRIDGE

WEQ-25(2).2L CARTRIDGE High Performance Water Filtration Solutions 56000.0123

WQ-55(3).2L CARTRIDGE

WQ-55(3).2L CARTRIDGE High Performance Water Filtration Solutions 56000.0102

WQ-55(2)5L SYSTEM

WQ-55(2)5L SYSTEM High Performance Water Filtration Solutions 56000.0001

WEQ-35(3.4).2L CARTRIDGE

WEQ-35(3.4).2L CARTRIDGE High Performance Water Filtration Solutions 56000.0126

WEQ-10(1.5)5L CARTRIDGE

WEQ-10(1.5)5L CARTRIDGE High Performance Water Filtration Solutions 56000.0121

WEQ-25(2).2L SYSTEM

WEQ-25(2).2L SYSTEM High Performance Water Filtration Solutions 56000.0025

WEQ-10(1.5)5L SYSTEM

WEQ-10(1.5)5L SYSTEM High Performance Water Filtration Solutions 56000.0024

WEQ-35(3).2L SYSTEM

WEQ-35(3).2L SYSTEM High Performance Water Filtration Solutions 56000.0034

WQ-55(2.1)5L CARTRIDGE

WQ-55(2.1)5L CARTRIDGE High Performance Water Filtration Solutions 56000.0101

Spec Sheets, Manuals, & Marketing Documents

Spec Sheet

English

Illustrated Parts

English English

Installation and Operating

English Chinese Dutch French (Canadian)German Italian Russian Spanish

Service and Repair

English

Declaration of Conformity

English

Specifications

Brewer Type

CAD 2D

Yes

Cord Attached

Yes

Plug Type

EURO 16A

Electrical Configuration

220-240 volts/ 3400-3800 watts/ 15.5-16 amps/ 1 phase/ 50-60 hertz/ 2 wire

Water Access

Plumbed

Min/Max Water Pressure(PSI)

20.0 / 90.0

Water Fitting

1/4" Male Flare Fitting

Finish/Color

Stainless

Funnel Type

Dispense Type

Portion Control, Push Button

Faucet Location

Upper

Temperature Time Setting

200� F

Product Warranty

2yrPrts/1yrLabor/3yrCBA

Machine Height

28.4

Machine Width

7.5

Machine Depth

17.4
