AXIOM® DV-3 Dual Volt (2 Upper/1 Lower Warmer)

AXIOM® DV-3 Dual Volt (2 Upper/1 Lower Warmer)

AXIOM® 12 Cup Dual-Voltage Coffee Brewer with 3 Warmers

38700.0008
NSF UL
Attention CA residents: Prop 65 Warning

Warning

This product can expose you to chemicals including BPA, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

Ok
Server(s) sold separately

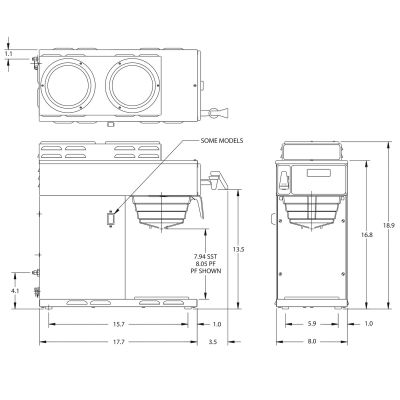

Dimensions: H 18.9" W 8.4" D 22.1"

Medium volume brewing solution featuring Digital Brewer Control for precise extraction control

Features:

  • Coffee extraction controlled with programmable pre-infusion, pulse brew and digital temperature control
  • Adjusts automatically to varying water pressure
  • SplashGard® funnel deflects hot liquids away from the hand
  • Electronic diagnostics and built-in tank drain make service easier
  • Energy-saver mode reduces tank temperature during idle periods
  • Hot water faucet
  • Servers not included unless otherwise noted
  • For high lime areas, BrewLOGIC® technology calculates flow rate and adjusts brew time to maintain consistent pot levels
  • Dual voltage adaptable (Can operate at 120V/15 amp or 120/208-240V/20 amp)
  • Ensure coffee quality with programming for brew level, cold brew lock- out and tank temperature, set easily from the front of the machine
  • Large 200oz. (5.9L) tank provides back-to-back brewing capacity
  • Automatic warmer shut-off
  • PROP 65 Warning Decal included in packaging with equipment
Show more
Worry-free installation. Click the service link, after checkout, to request a quote for installation.
Worry-free installation. Click the service link, after checkout, to request a quote for installation.

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Service and Repair
Programming
Cleaning Card
Specifications
Brewer Type
Automatics
CAD 2D
Yes
Cord Attached
Yes
Plug Type
NEMA 5-15P
DBC
Yes
Number of Warmers
Two Upper/ One Lower
Electrical Configuration 1
120 volts 1800.0 watts 15.0 amps 1.0 phase 60.0 hertz 2.0 wire
Electrical Configuration 2
120/208 volts 2980.0 watts 15.6 amps 1.0 phase 60.0 hertz 3.0 wire
Electrical Configuration 3
120/240 volts 3850.0 watts 17.5 amps 1.0 phase 60.0 hertz 3.0 wire
Electrical Configuration 4
120 volts 1800 watts 15 amps 1 phase 60 hertz 2 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 90.0
Water Fitting
1/4" Male Flare Fitting
BrewLOGIC®
Yes
Finish/Color
Stainless
Funnel Type
Black Plastic
Dispense Type
Faucet Location
Upper
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
18.9
Machine Width
8.4
Machine Depth
22.1
