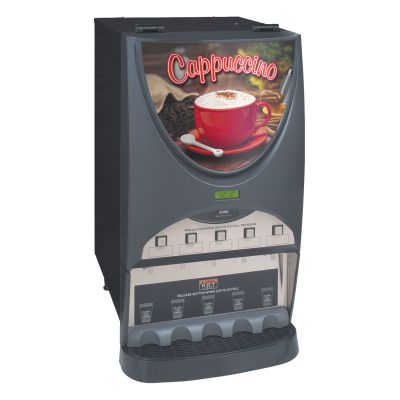

iMIX-5S+ Top Hinge

iMIX® Silver Series® Plus Hot Beverage System with 5 Hopper

38100.0050
NSF ETL
Dimensions: H 32.8" W 19.3" D 24.0"

Sleek, eye-catching powdered beverage dispenser featuring advanced mixing technology delivers exceptional hot drinks

Features:

  • Spring-loaded, all metal auger drive system for easy hopper installation
  • Capacity: Five 8lb (3.6kg) hoppers
  • Alphanumeric display allows adjustments and service operational testing from front of machine. Also communicates advertising messages, machine status and technical support contact information
  • Variable speed motors allow control of product consistency in mixing chamber (.75 to 6.6 grams of powder per second)
  • Can be set as push and hold or single size portion control
  • Cup clearance at 7.25" (18.4cm) to accommodate popular cup sizes [adjustable to 8.12" (20.6cm)]
  • 7gal (26.5L) hot water tank to meet peak serving times
  • High speed heavy-duty whipper for complete product mixing
  • Easily removable side panels for complete access to service components
  • High efficiency LED lighted front graphics for merchandising
  • Front of machine access to tank drain, dump valves, auger and whipper motors and control board for easy service set up and calibration
Show more
Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Service and Repair
Specifications
Brewer Type
CAD 2D
Yes
Cord Attached
Yes
Plug Type
NEMA 5-15P
Number of Hoppers
Five
Electrical Configuration
120 volts/ 1800 watts/ 15 amps/ 1 phase/ 50/60 hertz/ 2 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 100.0
Water Fitting
1/4" Male Flare Fitting
Finish/Color
Black
Funnel Type
Dispense Type
Portion Control, Push Button
Door Type
Lit
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
32.8
Machine Width
19.3
Machine Depth
24.0
