iMIX-5S+A

iMIX-5S+A

iMIX® Silver Series® Plus Hot Beverage System with 5 Hoppers

38100.0005
CE

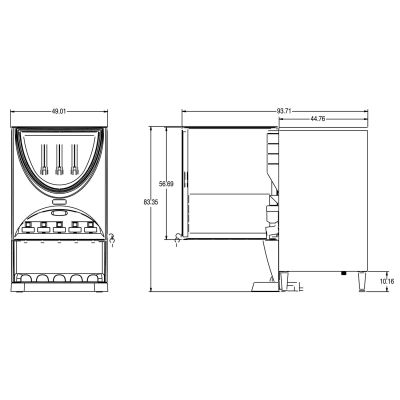

Dimensions: H 32.8" W 19.3" D 24.0"

Sleek, eye-catching powdered beverage dispenser featuring advanced mixing technology delivers exceptional hot drinks

Features:

  • Cup clearance at 7.25" (18.4cm) to accommodate popular cup sizes [adjustable to 8.12" (20.6cm)]
  • High efficiency LED lighted front graphics for merchandising
  • Alphanumeric display allows adjustments and service operational testing from front of machine. Also communicates advertising messages, machine status and technical support contact information
  • Variable speed motors allow control of product consistency in mixing chamber (.75 to 6.6 grams of powder per second)
  • Capacity: Five 8lb (3.6kg) hoppers
  • Iced Cappuccino display available
  • 7gal (26.5L) hot water tank to meet peak serving times
  • Front of machine access to tank drain, dump valves, auger and whipper motors and control board for easy service set up and calibration
  • High speed heavy-duty whipper for complete product mixing
  • Can be set as push and hold or single size portion control
  • Spring-loaded, all metal auger drive system for easy hopper installation
  • Easily removable side panels for complete access to service components
Show more
Worry-free installation. Click the service link, after checkout, to request a quote for installation.
Worry-free installation. Click the service link, after checkout, to request a quote for installation.

This product is not available for online purchase. Please call 1-800-626-2866 for assistance in purchasing this product, or use the Learn more button to submit a request for more information.

Learn more

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Service and Repair
Specifications
Brewer Type
CAD 2D
Yes
Cord Attached
Yes
Plug Type
EURO 16A
Number of Hoppers
Five
Electrical Configuration
220-240 volts 3000-3500 watts 13.6-14.5 amps 1 phase 50-60 hertz 2 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 100.0
Water Fitting
1/4" Male Flare Fitting
Finish/Color
Black
Funnel Type
Dispense Type
Portion Control, Push Button
Door Type
Side Hinge
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
32.8
Machine Width
19.3
Machine Depth
24.0
