JDF-4SA Iced Coffee

Silver Series® 4-Flavor Cold Bev System

37300.0021

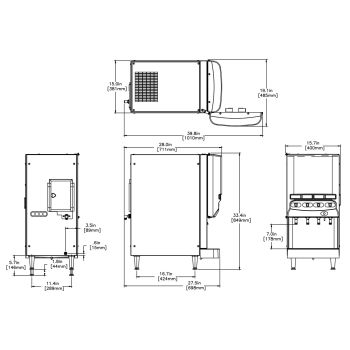

Dimensions: H 33.4" W 15.7" D 28.0"

Cold beverage concentrate dispenser with four dispense heads, a High Intensity® Mixing System for premium drink consistency (brix accuracy), and superior burst capacity to provide more cold, quality beverages --- all in an easy to use, operator friendly design.

Features:

  • Quick dispense with 29.6 to 44.4mL per second flow rate
  • Iced Coffee Graphic
  • Door Lock Standard
  • Service friendly design makes set up and maintenance simple
  • LED lighted door graphics bring high visibility to front-of-house applications
  • Burst Capacity: At rate of three 355mL drink/min, 145 drinks before exceeding 5°C (24°C ambient and 24°C incoming water temp)
  • With Cold Water dispense feature
  • 17.8cm cup clearance
  • Both push and hold dispense and optional single size portion control dispense available in the same dispenser
  • One dispenser delivers both frozen and ambient concentrate products to maximize profitability by providing greater flexibility in product offerings
  • Patented High Intensity Mixing System delivers consistent quality beverages in the cup - cup after cup, from the top of the cup to the bottom of the cup
  • Pumps and Mixes most 2+1 to 11+1 concentrates accurately and consistently, including 4+1 and 5+1 high viscosity concentrates
Show more

This product is not available for online purchase. Please call 1-800-626-2866 for assistance in purchasing this product, or use the Learn more button to submit a request for more information.

Learn more
Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Service and Repair
Specifications
Brewer Type
CAD 2D
Yes
Cord Attached
Yes
Plug Type
EURO 16A
Electrical Configuration
220-230 volts 450-480 watts 2.65-2.85 amps 1 phase 50-60 hertz 2 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 100.0
Water Fitting
3/8" Male Flare Fitting
Refrigerant
R-134A
Finish/Color
Black
Funnel Type
Dispense Type
Push Button
Door Type
Lit
Legs
4" Black Legs
Machine Height
33.4
Machine Width
15.7
Machine Depth
28.0
