LCA-2 Portion Control (with Scholle 1910LX 1/8")

2 Product Liquid Coffee Ambient Disp w/Portion Control

36500.0001

Dimensions: H 31.4" W 12.2" D 24.8"

Spec sheet and manuals

Low-to-medium volume coffee-on-demand dispensers for shelf stable products

Features:

Attractive appearance and narrow 12" (30.5 cm) width
Refill or rinse LED lights alert the operator for concentrate or cleaning
Accommodates 1⁄2gal (1.9L) and most 1gal (3.8L) bag-in-box (BIB) containers
FlavorGard® technology continuously monitors extract-to-water ratio and assures flavor consistency
Easy-to-program one touch portion control
Insulated product cabinet assures maximum product life
Ventilated Cabinet

Spec Sheets, Manuals, & Marketing Documents

Spec Sheet

English

Illustrated Parts

English

Installation and Operating

English Spanish

Specifications

Brewer Type

Liquid Coffee

CAD 2D

Yes

ADA

Supports Reqts as Shipped

Cord Attached

Yes

Plug Type

NEMA 5-15P

Electrical Configuration 1

120/208 volts/ 4331.0 watts/ 20.8 amps/ 1.0 phase/ 60.0 hertz/ 3.0 wire

Electrical Configuration 2

208 volts/ 4331.0 watts/ 20.8 amps/ 1.0 phase/ 60.0 hertz/ 2.0 wire

Electrical Configuration 3

240 volts/ 5700.0 watts/ 23.7 amps/ 1.0 phase/ 60.0 hertz/ 2.0 wire

Electrical Configuration 4

120 volts/ 1575 watts/ 13.2 amps/ 1 phase/ 60 hertz/ 2 wire

Electrical Configuration 5

120/240 volts/ 5700.0 watts/ 23.7 amps/ 1.0 phase/ null hertz/ 3.0 wire

Electrical Configuration 6

120 volts/ 1575.0 watts/ 13.2 amps/ 1.0 phase/ 60.0 hertz/ 2.0 wire

Water Access

Plumbed

Min/Max Water Pressure(PSI)

20.0 / 90.0

Water Fitting

3/8" Male Flare Fitting

Finish/Color

Black

Funnel Type

Dispense Type

Portion Control

Machine Height

31.4

Machine Width

12.2

Machine Depth

24.8

Images

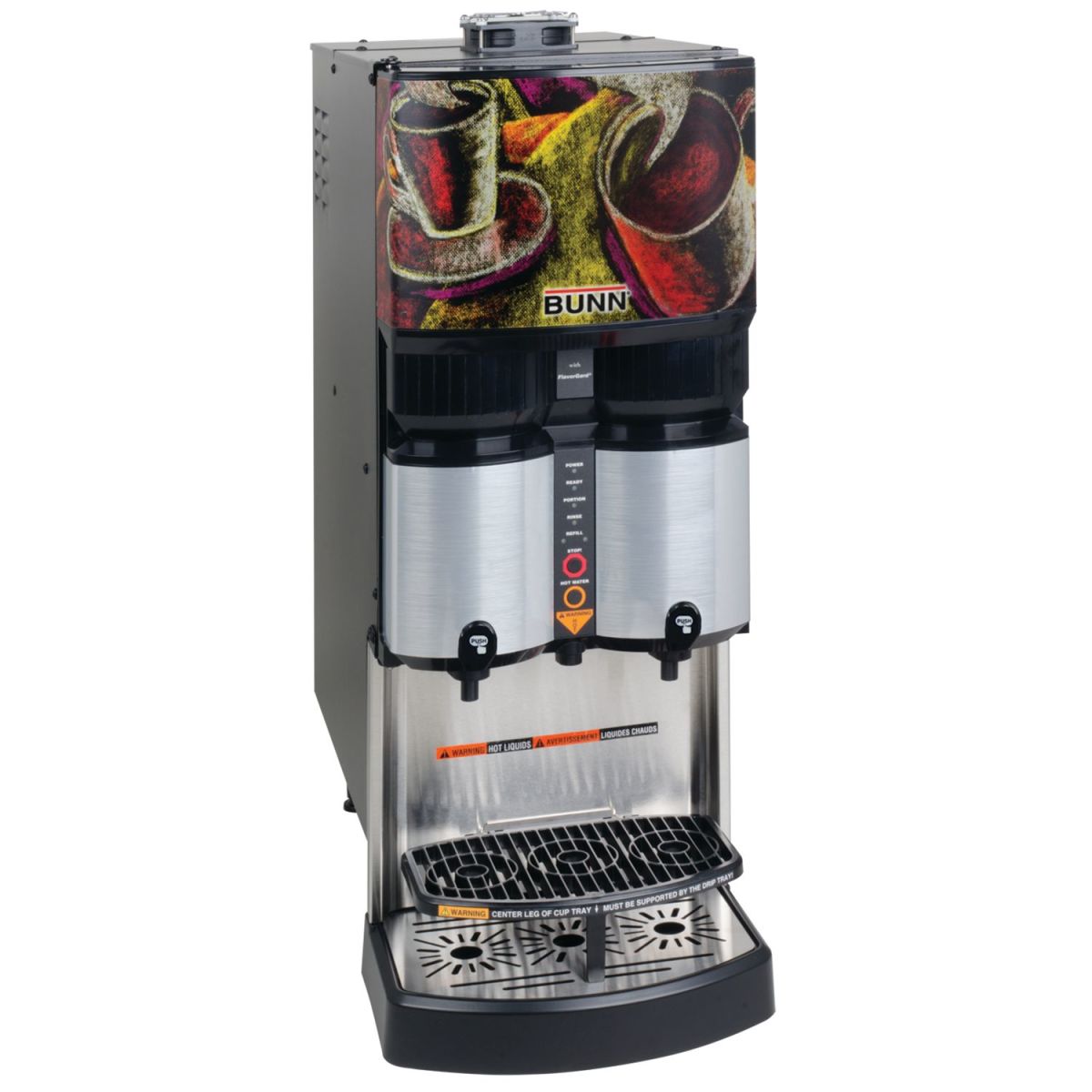

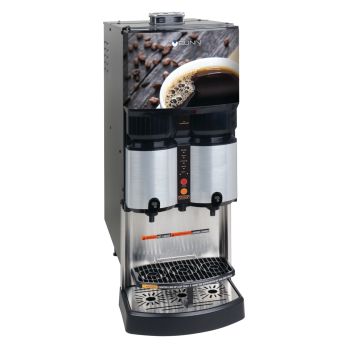

LCA-2 Portion Control (with Scholle 1910LX 1/8")
