Single® TF ThermoFresh® DBC® Stainless 120/208V with Funnel Locks

Single® TF ThermoFresh® DBC® Stainless 120/208V with Funnel Locks

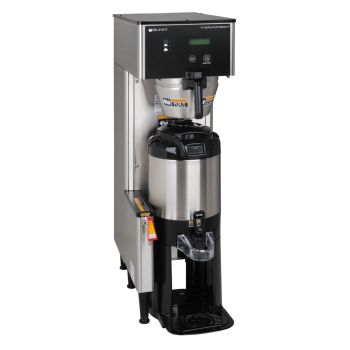

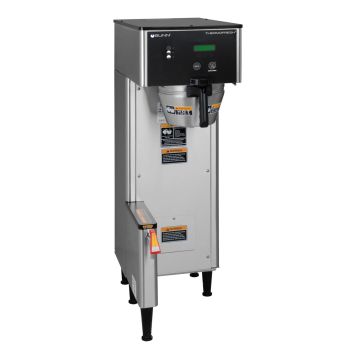

Single BrewWISE® ThermoFresh® DBC® 120/208V Brewer w/Funnel Locks

34800.0003
NSF UL
Server(s) sold separately
Dimensions: H 35.7" W 12.1" D 22.7"

The TF brewers use Digital Brewer Control with insulated ThermoFresh servers that hold beverages at optimum flavor profile for hours without requiring the energy consumption of traditional warming plates

Features:

  • Stores individual coffee recipes so operator can easily brew many varieties
  • Brews 1/2, 1 or 1 1/2gal (1.9, 3.8 or 5.7L) batches
  • Create coffee recipe cards with custom recipes, ad cards with messages that display on the brewer LCD, and dedicated funnels for special coffees with the BrewWISE Recipe Writer using your PC (Windows® compatible).
  • Easy pulse interface allows automatic programming of pulse routine
  • Funnel locks help improve safety
  • Coffee extraction controlled with pre-infusion and pulse brew, digital temperature control, and large sprayhead; coffee strength controlled with variable by-pass.
  • Operate any combination of BrewWISE equipment error-free with wireless brewer-grinder interface through Smart Funnel with SplashGard®
  • Energy saver mode reduces tank temperature during idle periods
  • Servers not included unless otherwise noted
  • Preventive maintenance kit: 39641.0000
  • SplashGard® funnel deflects hot liquids away from the hand
  • ThermoFresh® servers are vacuum insulated to keep coffee hot for hours.
  • Brews 16.3 to 18.9gal (61.7 to 71.5L) of perfect coffee per hour
Show more
Worry-free installation. Click the service link, after checkout, to request a quote for installation.
Worry-free installation. Click the service link, after checkout, to request a quote for installation.

This product may no longer be available for purchase or may have a suggested alternative . Please call 1-800-626-2866 for assistance, or use the “Learn more” button to submit a request for more information.

Learn more

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Service and Repair
Programming
Specifications
Brewer Type
Thermal Systems, Satellite Systems
CAD 2D
Yes
ADA
Supports Reqts as Shipped
DBC
Yes
Electrical Configuration
120/208 volts 4000 watts 19.2 amps 1 phase 60 hertz 3 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 90.0
Water Fitting
3/8" Male Flare Fitting
BrewWISE®
Yes
Brewer to Grinder Interface
Wireless
Finish/Color
Stainless
Funnel Type
Smart Funnel
Funnel Locks
Yes
Dispense Type
Faucet Location
Lower
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
35.7
Machine Width
12.1
Machine Depth
22.7
