JDF-4S, Tap - Coffee Graphics

JDF-4S, Tap - Coffee Graphics

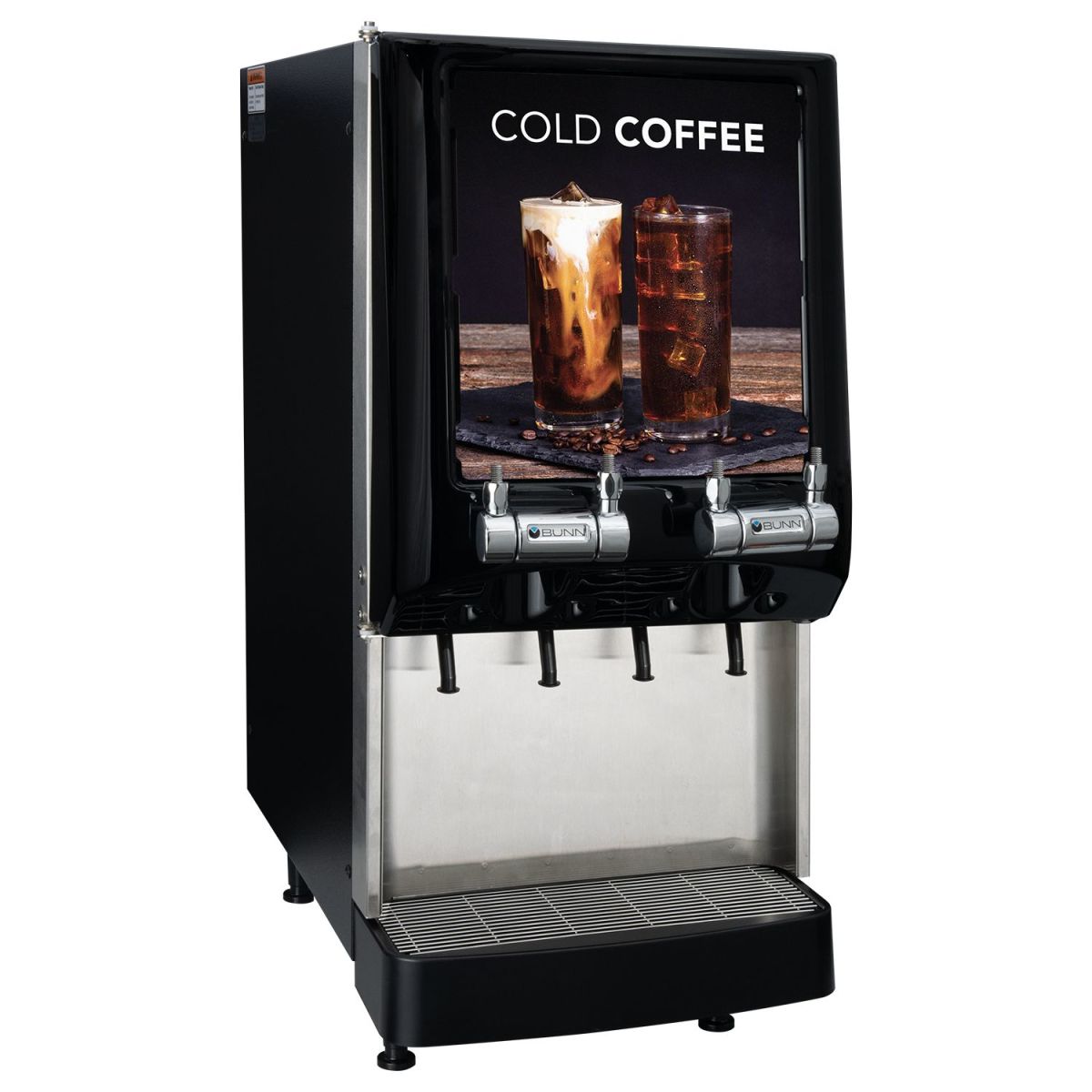

Cold beverage dispenser with 4 heads, 120V, lit display, coffee graphics, and no handles included

Tap Handles Not Included
Dimensions: H 33.5" W 14.9" D 27.5"


  • LED lighted door graphics bring high visibility to front-of-house applications
  • Exclusive High Intensity Mixing System delivers consistent quality beverages in the cup - cup after cup, from the top of the cup to the bottom of the cup
  • Door Lock Standard
  • Burst Capacity: At rate of three 12 oz drink/min, 145 drinks before exceeding 41°F (75°F ambient and 75°F incoming water temp)
  • 7" (17.8cm) cup clearance accommodates most juice containers
  • Serve four different beverages, using 1- gallon concentrate ball-valve BIBs or BUNN refillable containers
  • Service friendly design makes set up and maintenance simple
  • Quick dispense with 1.0 to 1.5oz (29.6 to 44.4ml) per second flow rate
  • Pumps and Mixes most 2+1 to 11+1 concentrates accurately and consistently, including 4+1 and 5+1 high viscosity concentrates
  • One dispenser delivers both frozen and ambient concentrate products to maximize profitability by providing greater flexibility in product offerings
  • Mounted on standard 3/8"-16 UNC threads, chrome plated brass tap handles are interchangeable with custom handles for a more personalized look
Show more
Worry-free installation. Click the service link, after checkout, to request a quote for installation.
Worry-free installation. Click the service link, after checkout, to request a quote for installation.

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Service and Repair
Brewer Type
Electrical Configuration
120 volts 720 watts 6 amps 1 phase 60 hertz 2 wire
Water Access
Min/Max Water Pressure(PSI)
20.0 / 100.0
Water Fitting
3/8" Male Flare Fitting
Funnel Type
Dispense Type
Product Warranty
Machine Height
Machine Width
Machine Depth
Unit Weight
