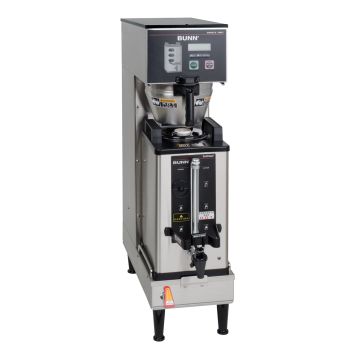

Single® SH Soft Heat® DBC® Stainless, 120V with Funnel Locks & Lower Faucet

Single® SH Soft Heat® DBC® Stainless, 120V with Funnel Locks & Lower Faucet

Single BrewWISE® Soft Heat® DBC® 120V w/Fnl Lks & Lwr Faucet

33600.0029
NSF UL
Server(s) sold separately
Dimensions: H 35.8" W 9.3" D 24.7"

Server holds beverages at a consistent temperature in the docking system

Features:

  • Servers not included unless otherwise noted
  • Operate any combination of BrewWISE equipment error-free with wireless brewer-grinder interface through Smart Funnel with SplashGard®
  • Troubleshoot all switches and electrical components from the front panel with advanced diagnostic service tools
  • Funnel locks help improve safety
  • Simplify installation and calibration by creating your own recipe cards and dedicated funnels with the BrewWISE Recipe Writer using your PC (Windows® compatible).
  • Energy saver mode reduces tank temperature during idle periods
  • Stores individual coffee and flavor profiles using adjustable water volume, bypass percentage, pulse brew, and pre-infusion timing
  • Brews 1/2, 1 or 1 1/2gal (1.9, 3.8 or 5.7L) batches
  • SplashGard® funnel deflects hot liquids away from the hand
  • Brews 11.4gal (43.2L) of perfect coffee per hour
  • Reduce accidents with safety features that decrease hot splashes from funnel, eliminate brewing when funnel or server is not present
  • Consistently brew perfect coffee using Digital Brewer Control™ with pulse brew
Show more
Worry-free installation. Click the service link, after checkout, to request a quote for installation.
Worry-free installation. Click the service link, after checkout, to request a quote for installation.

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Service and Repair
Instruction
Specifications
Brewer Type
Satellite Systems
CAD 2D
Yes
ADA
Supports Reqts as Shipped
Cord Attached
Yes
Plug Type
NEMA 5-15P
DBC
Yes
Electrical Configuration
120 volts 1900 watts 15.8 amps 1 phase 60 hertz 2 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 90.0
Water Fitting
1/4" Male Flare Fitting
BrewWISE®
Yes
Brewer to Grinder Interface
Wireless
Finish/Color
Stainless
Funnel Type
Smart Funnel
Funnel Locks
Yes
Dispense Type
Faucet Location
Lower
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
35.8
Machine Width
9.3
Machine Depth
24.7
