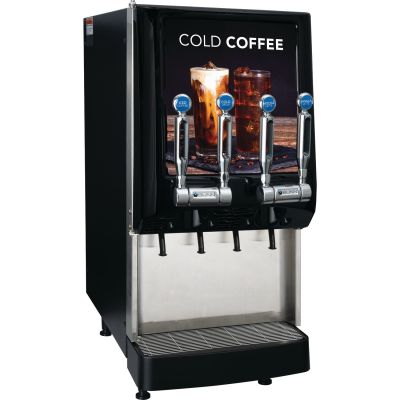

JDF-4S, Tap - Coffee Graphics

JDF-4S, Tap - Coffee Graphics

Cold beverage dispenser with 4 heads, 120V, lit display, coffee graphics

37300.0097
NSF ETL
Attention CA residents: Prop 65 Warning

Warning

This product can expose you to chemicals including BPA, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

Ok
Dimensions: H 33.5" W 14.9" D 27.5"

Features:

  • Burst Capacity: At rate of three 12 oz drink/min, 145 drinks before exceeding 41°F (75°F ambient and 75°F incoming water temp)
  • Service friendly design makes set up and maintenance simple
  • 7" (17.8cm) cup clearance accommodates most juice containers
  • Door Lock Standard
  • Serve four different beverages, using 1- gallon concentrate ball-valve BIBs or BUNN refillable containers
  • Exclusive High Intensity Mixing System delivers consistent quality beverages in the cup - cup after cup, from the top of the cup to the bottom of the cup
  • Quick dispense with 1.0 to 1.5oz (29.6 to 44.4ml) per second flow rate
  • One dispenser delivers both frozen and ambient concentrate products to maximize profitability by providing greater flexibility in product offerings
  • Mounted on standard 3/8"-16 UNC threads, chrome plated brass tap handles are interchangeable with custom handles for a more personalized look
  • LED lighted door graphics bring high visibility to front-of-house applications
  • Pumps and Mixes most 2+1 to 11+1 concentrates accurately and consistently, including 4+1 and 5+1 high viscosity concentrates
Show more
Worry-free installation. Click the service link, after checkout, to request a quote for installation.
Worry-free installation. Click the service link, after checkout, to request a quote for installation.

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Service and Repair
Specifications
Brewer Type
Cord Attached
Yes
Plug Type
NEMA 5-15P
Electrical Configuration
120 volts 720 watts 6 amps 1 phase 60 hertz 2 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 100.0
Water Fitting
3/8" Male Flare Fitting
Refrigerant
R-134A
Funnel Type
Dispense Type
Product Warranty
2yrPrts/1yrLabor/3yrCBA/5yrCpr
Machine Height
33.5
Machine Width
14.9
Machine Depth
27.5
Unit Weight
144.0
