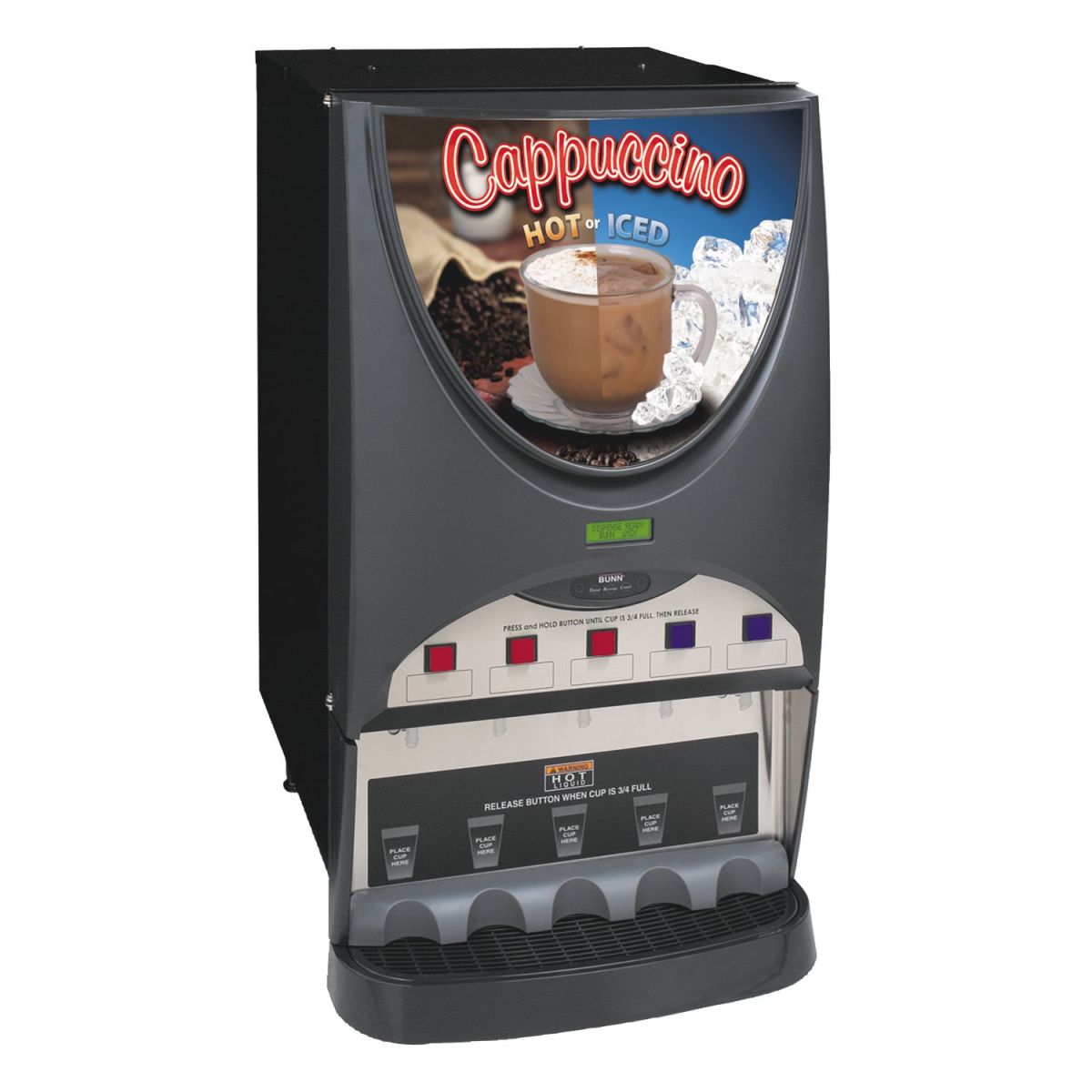

iMIX-5S+, Hot & Iced

iMIX® Silver Series® Plus Hot & Iced Beverage System with 5 Hoppers

40900.6000
Dimensions: H 32.8" W 19.3" D 24.0"

Sleek, eye-catching powdered beverage dispenser featuring advanced mixing technology delivers exceptional hot drinks

Features:

  • Cup clearance at 7.25" (18.4cm) to accommodate popular cup sizes [adjustable to 8.12" (20.6cm)]
  • Spring-loaded, all metal auger drive system for easy hopper installation
  • Capacity: Five 8lb (3.6kg) hoppers
  • High efficiency LED lighted front graphics for merchandising
  • 3 dispense nozzles for hot drinks and 2 for iced cappuccino with split hot/iced cappuccino lighted display
  • Variable speed motors allow control of product consistency in mixing chamber (.75 to 6.6 grams of powder per second)
  • Can be set as push and hold or single size portion control
  • One 3gal (11.35L) and One 2gal (7.57L) hot water tank, with individually controlled thermostats, adjustable from 50U+00B0 to 200U+00B0F, for optimum drink quality for hot and cold products
  • Easily removable side panels for complete access to service components
  • Alphanumeric display allows adjustments and service operational testing from front of machine. Also communicates advertising messages, machine status and technical support contact information
  • Front of machine access to tank drain, dump valves, auger and whipper motors and control board for easy service set up and calibration
  • High speed heavy-duty whipper for complete product mixing
Show more

This product is not available for online purchase. Please call 1-800-626-2866 for assistance in purchasing this product, or use the Learn more button to submit a request for more information.

Learn more
Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Service and Repair
Specifications
Brewer Type
CAD 2D
Yes
Number of Hoppers
Five
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 100.0
Water Fitting
1/4" Male Flare Fitting
Finish/Color
Black
Funnel Type
Dispense Type
Portion Control, Push Button
Door Type
Side Hinge
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
32.8
Machine Width
19.3
Machine Depth
24.0
