LCR-3 DBC® High Volume (with Scholle 1910LX)

LCR-3 DBC® High Volume (with Scholle 1910LX)

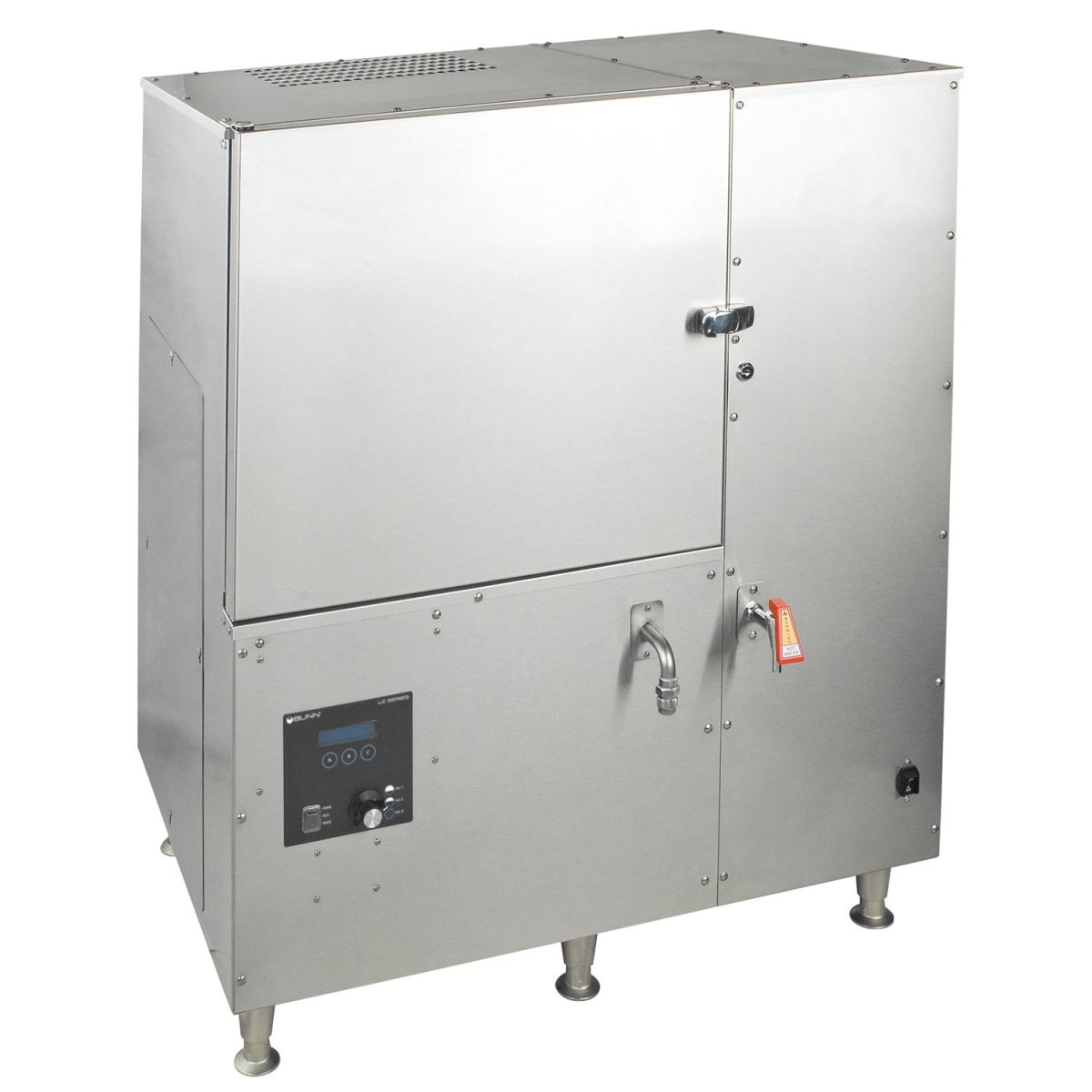

High Volume DBC® Liquid Coffee Refrigerated Dispenser

40800.0001
NSF UL
Server(s) sold separately
Dimensions: H 39.9" W 32.9" D 27.14"

High volume coffee-on-demand dispenser meets the requirements of banquet halls, convention centers, stadiums and hotels

Features:

  • Three dispense buttons allow operator to dispense three independent ratios
  • Each dispense button allows the option of up to 3 portion sizes via rotary selection switch
  • In two flavor mode, the optional “Auto-Switching" function automatically switches from an empty BIB to a secondary BIB (left and middle pump only)
  • Refrigerated product cabinet extends product flavor profile, adjustable to maintain 41º to 65ºF in the product compartment
  • Manual hot water faucet
  • LCD screen for programming and user interface
  • Accommodates up to three 1gal (3.8L) bag-in-box (BIB) containers
  • 3-phase or single phase operation
  • 18gal (82L) tank capacity
  • Includes threaded dispense nozzle and 4 foot (1.2m) dispense hose that may be attached for easy dispensing into any server
Show more
Worry-free installation. Click the service link, after checkout, to request a quote for installation.
Worry-free installation. Click the service link, after checkout, to request a quote for installation.

Residential Users: Warranty is void if commercial equipment is used for residential or non-commercial use.

Spec Sheets, Manuals, & Marketing Documents
Spec Sheet
Illustrated Parts
Installation and Operating
Specifications
Brewer Type
Liquid Coffee
CAD 2D
Yes
Electrical Configuration 1
120/240 volts 10400.0 watts 43.2 amps 1.0 phase 60.0 hertz 3.0 wire
Electrical Configuration 2
120/208 volts 7820.0 watts 37.6 amps 1.0 phase 60.0 hertz 3.0 wire
Electrical Configuration 3
120/208 volts 12000.0 watts 32.8 amps 3.0 phase 60.0 hertz 4.0 wire
Electrical Configuration 4
120/240 volts 15000 watts 37.6 amps 3 phase 60 hertz 4 wire
Electrical Configuration 5
120/240 volts 15000.0 watts 37.6 amps 3.0 phase 60.0 hertz 4.0 wire
Water Access
Plumbed
Min/Max Water Pressure(PSI)
20.0 / 90.0
Water Fitting
3/8" Male Flare Fitting
Finish/Color
Stainless
Funnel Type
Dispense Type
Product Warranty
2yrPrts/1yrLabor/3yrCBA
Machine Height
39.9
Machine Width
32.9
Machine Depth
27.14
